SpheroRuler - Calibration beads for SMLM microscopy

Calibration beads for super-resolution microscopy

1 vial of 50 µL of a SpheroRuler suspension in PBS pH 7.4

​

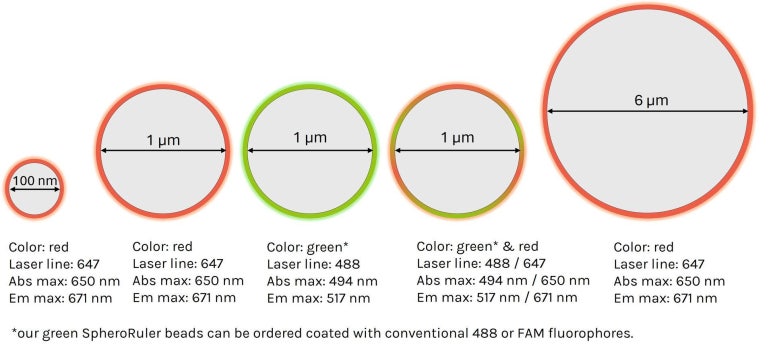

Cat.#                                     Bead type(Size/Color)      Pack Size

AFA-NAN-100-647              100nm / Far-red                  50 µL

AFA-NAN-1000-647            1um / Far-red                      50 µL

AFA-NAN-1000-488            1um / Green                        50 µL

AFA-NAN-1000-647+488   1um / Far-red + Green        50 µL

AFA-NAN-6000-647           6um / Far-red                      50 µL

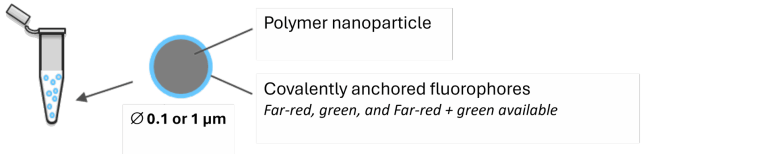

SpheroRuler is a monodispersed suspension of 1µm diameter spheres coated with far-red and/or green fluorophores giving a stable blinking in SMLM microscopy. Their consistent size and geometry make them very practical and reliable standards to assess the accuracy of your x-y or z measurements, 3D reconstruction methods or your image quality. Monodispersed and immobile in solution, they can also be used as rulers, for drift correction or as guides to help localize features on your biological samples.

Kit description: 1 vial of 50 µL of a SpheroRuler suspension in PBS pH 7.4.

Allows 10 experiments when using the recommended 5 µL volume in 35 mm glass-bottom dishes.

​

Concentration: 3.5 x 10e6 particles per mL (6 µm beads), 7 x 10e8 particles per mL (1 µm beads) or 7 x 10e11 particles per mL (100 nm beads).

​

Stability: at least 7 months when stored at 4°C.

​

Dyes: Far-red fluorescent beads are coated with 647-fluorophores. Green fluorescent beads are coated with your choice of 488 or 495-fluorophores.

​

Compatible with: dSTORM, SRRF, Airyscan confocal, confocal, SEM

​

The SpheroRuler family is expanding !

Following the success of SpheroRuler beads, we are thrilled to introduce some brand-new SpheroRulers of various sizes and colours that are now ready to join our catalog:

Additional resources:

• Product overview
• Safety Datasheet

​

Visit our glossary for a definition of dSTORM and super-resolution microscopy .

​

​
