NEXTERION® Aminosilane Coating (A+)

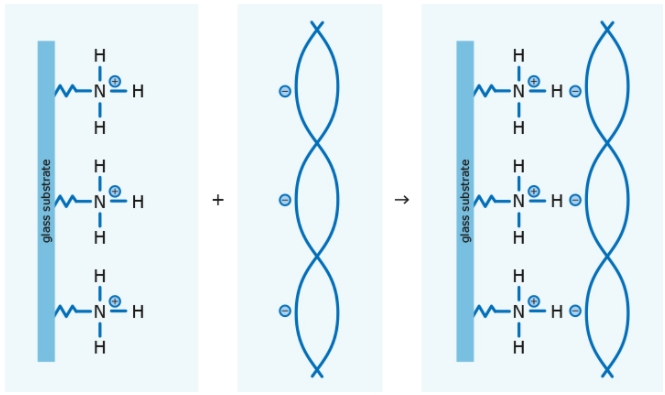

The NEXTERION® aminosilane surface provides available amine groups for initial ionic attachment of the negatively charged phosphate groups in the DNA backbone.



The coating is based on very short chains of aminosilanes that demonstrate high signal intensities and exceptionally low background noise signals in comparison to other commercially available aminosilane coated substrates.



Produced in ISO class 5 clean room conditions using a standardized process and running a stringent quality control system, aminosilane coated substrates are available in standard and custom formats.



Product Information

• Coating Chemistry

• Shelf Life
  Nine months for sealed packages at room temperature.

• Immobilization Method
  Ionic interaction followed by cross-linking via an additional UV or baking step.

• Suitable Probe Types
  • BACs, PACs, YACs
  • Oligonucleotides ≥40 mers
  • cDNA
  • PCR products



Advantages

• Material:
  • High-quality borosilicate glass
  • Alternative substrate materials can be offered


• Formats:
  • Standard sizes (slide format, SBS plate format)
  • Customized dimensions and thicknesses


• Structuring:
  • Pre-scoring
  • Hydrophobic coating for multiplexing


• Markings:
  • Barcodes (1D e.g. code 39, code 128; 2D e.g. QR, data matrix)
  • Logos
  • Position markings and fiducials


• Quality:
  • Excellent intra- and inter-lot reproducibility
  • Physical and functional quality control
  • ISO class 5 clean room production
  • Relevant processes in place for diagnostic company needs



Supply Forms

Product	Size (mm)	Thickness (mm)	Pieces per pack
Slide A+	75.6 × 25.0	1.0	25
Plate A+	110.0 × 74.0	1.0	5
Customized A+	Variable	0.1–2.5	Variable



Downloads

• MSDS >
• Brochure >
• Protocol >



Coating Selection Table

SCHOTT MINIFAB offers a wide range of functional coating chemistries for DNA and protein microarrays as well as other applications.



The following table indicates the most appropriate coating for specific applications.



Probe type	Nexterion Coating
Oligonucleotides	Aminosilane, Epoxysilane, 3-D Hydrogel, 3-D Polymer
cDNA/PCR	Aminosilane, Epoxysilane, Aldehydesilane
Bacterial artificial chromosomes (BAC)	Aminosilane, Epoxysilane, Aldehydesilane
Peptides	Epoxysilane, Aldehydesilane
Proteins	3-D Hydrogel, 3-D Polymer
Antibodies	Epoxysilane, Aldehydesilane, 3-D Hydrogel, 3-D Polymer
Glycans	3-D Hydrogel, 3-D Polymer
Cells/tissues	Depending on type of cell/tissue, please contact us for support and free-of-charge evaluation samples
Biotin modified molecules	Streptavidin
