[PDMS 필픔/PDMS Film/Polydimethylsiloxane Flm/폴리다이메틸실록산 필름] PDMS sheet (Ultra-thin) [CSCPD1001, CSCPD1502, CSCPD5015, CSCPD10015, CSCPD10001, CSCPD20015, CSCPD1501, CSCPD15015, CSCPD501]_Funakoshi - 코아사이언스

코피디 2021. 12. 28. 17:42

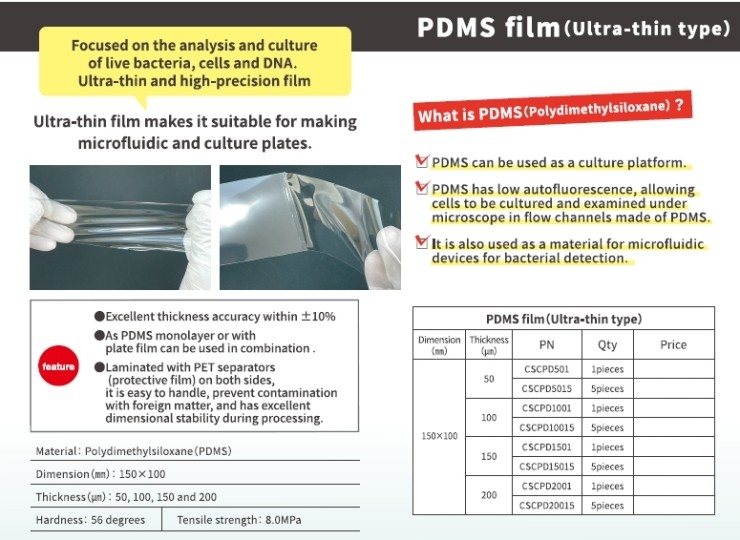

PDMS sheet (Ultra-thin)

Ultra-thin, high-precision PDMS sheet attracting attention in fields such as analysis and culture of live bacteria, cells, DNA, etc.



It is a sheet made of polydimethylsiloxane (PDMS), which is attracting attention in the fields of analysis and culture of live bacteria, cells, DNA, etc. It is an ultra-thin film and is processed with high precision.





Features

  • Excellent thickness accuracy within ± 10%.
  • It can be used as a single layer of PDMS or composited with a base film.
  • With PET separators (protective film) on both sides, it is easy to handle, prevents foreign matter from entering, and has excellent dimensional stability during processing.



Usages

  • Analysis fields of live bacteria, cells, DNA, etc.
  • Chemistry / biochemistry fields such as culture
  • Use for microfluidic devices, etc.

Example of attaching a PDMS sheet to the bottom of the culture plate

Specifications

  • Material: Polydimethylsiloxane (PDMS)
  • Size: 150 mm x 100 mm, 300 mm x 200 mm
  • Thickness: 50 μm, 100 μm, 150 μm, 200 μm
  • Hardness: 56 °
  • Tensile strength: 8.0 MPa

주문 정보

 PDMS Fiilm (Ultra-thin) ==> 단종. "PDMS Sheet (Ultrathin) UT60" 시리즈로 대체 출시 (아래 참조)!
 Dimension (mm)  Thickness (um)  Cat.#  Q'ty
 150 x 100  50  CSCPD501 (단종)  1 piece
 CSCPD5015 (단종)  5 pieces
 100  CSCPD1001 (단종)  1 piece
 CSCPD10015 (단종)  5 pieces
 150  CSCPD1501 (단종)  1 piece
 CSCPD15015 (단종)  5 pieces
 200  CSCPD2001 (단종)  1 piece
 CSCPD20015 (단종)  5 pieces
 300 x 200  50  CSCPD502 (단종)   1 piece
 100  CSCPD1002 (단종)  1 piece
 150  CSCPD1502 (단종)  1 piece
 200  CSCPD2002 (단종)  1 piece



 PDMS Sheet (Ultrathin) UT60
 Dimension  Thickness  Cat.#  Q'ty
 150mm x 100mm  100 μm CSCPD1001-UT  1 piece
CSCPD10015-UT  5 pieces
 150 μm CSCPD1501-UT  1 piece
CSCPD15015-UT  5 pieces
 200 μm CSCPD2001-UT  1 piece
CSCPD20015-UT  5 pieces
 300mm x 300mm  100 μm CSCPD1003-UT  1 piece
 150 μm CSCPD1503-UT  1 piece
 200 μm CSCPD2003-UT  1 piece

Specifications (old vs new comparison)

​
Old series
New series
(UT60 series)
Materials
Polydimethylsiloxane (PDMS)
Size
150×100 mm, 300×200 mm
150×100 mm, 300×300 mm
Thickness
50 μm, 100 μm, 150 μm, 200 μm
100 μm, 150 μm, 200 μm
Hardness
56° (Durometer A)
57°-63°
Tensile strength
8.0 MPa
9.29 MPa

관련 상품

 PDMS Fiilm
 Dimension (mm)  Thickness (mm)  Cat.#  Q'ty
 120 x 80  1  CSCPD10001  1 piece
 2  CSCPD20001  1 piece
 3  CSCPD30001  1 piece
