Sterlitech HP4750 High Pressure Stirred Cell

Cat.# HP4750

Details

The Sterlitech HP4750 stirred cell is a high-pressure stirred cell that is both chemically resistant and features a low hold-up volume (1 ml). This particular brand of stirred cell is able to perform a wide variety of membrane separations.

​

HP4750 Stirred Cell Product Benefits:

• Max operating pressure is 1000 psi
• Removable PTFE stir bar
• 316 stainless steel

​

Applications

Safe Operation: Volatile solutions can be processed safely because the Sterlitech™ HP4750 operates on standard sources of compressed air or inert gases (nitrogen, argon, etc.). This provides the user with a variable, safe and consistent supply of pressure to effect membrane separations.

​

High-Pressure Operation: Solutions with high levels of dissolved solids and high osmotic pressure can be separated with the Sterlitech™ HP4750. The cell is designed for safe operation to 1000 psig (69 bar).

​

Removable Stir Bar: Concentration polarization at the membrane surface is minimized by a PTFE-coated magnetic stir bar mechanism. The stir bar can be driven by any standard stirring plate.

​

Accepts Standard Membrane Discs: Sterlitech™ HP4750 Stirred Cell accommodates any 47 to 50 mm diameter membrane disc.

​

Chemically Resistant Materials of Construction: 316L stainless steel construction makes the Sterlitech™ HP4750 resistant to most chemical degradation. Buna-N gaskets and O-rings are provided as standard with other optional materials available to meet operating requirements.

​

Unique Design: The cell top can easily be removed to fill the vessel with up to 300 mL of solution. The cell bottom is removable for quick membrane change-out. The top and bottom are secured to the vessel with mechanical couplings. This unique design enables low hold-up volume, down to as low as 1 mL, so valuable solutions are not wasted.

​

Specifications

HP4750 Comparison:

	HP4750	​ ​ HP4750X
Membrane Size	1.93 in dia. nominal (49 mm)	1.93 in dia. nominal (49 mm)
Active Membrane Area	2.26 in2 (14.6 cm2)	2.26 in2 (14.6 cm2)
Processing Volume	Up to 300 mL	Up to 300 mL
Hold-Up Volume	1 mL	1 mL
​ Max Pressure	1000 psig (69 bar) w/high-pressure clamps	2500 psig (172 bar)
​ Max Temp	250 °F (121 °C) at 800 psig (55 bar)	400 °F (205 °C) at 2000 psig (138 bar)
Max Torque Setting for Nuts	20 ft-lbs	NA
pH Range	Membrane Dependent	Membrane Dependent
Connections	Permeate Outlet: ⅛ in dia. 316L SS tubing; Pressure Inlet: ¼ in FNPT	Permeate Outlet: ⅛ in dia. 316L SS tubing; Pressure Inlet: ¼ in FNPT
​ Cell Body	316L Stainless Steel	316L Stainless Steel
​ O-Rings	Buna-N, others available as options	Viton or PTFE
​ Gasket	Buna-N, others available as options	Viton or PTFE
​ Stir Bar	PTFE	PTFE
​ Cell Diameter	2.0 in (5.1 cm)	2.75 in (7.0 cm)
​ Cell Height	7.8 in (19.9 cm)	10 in (22.4 cm)
​ Cell Width	5.7 in (14.6 cm) w/high-pressure couplings	NA

Note: OSN Membranes should be pre-soaked in pure organic solvent prior to testing.

​

Supporting

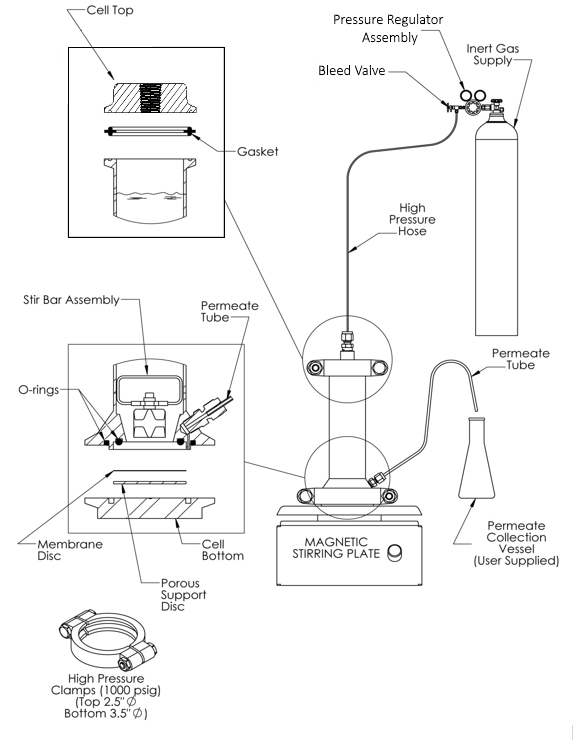

Principles of Operation

HP4750 Pressure Regulator Assembly

​

Animations

HP4750 Stirred Cell Animation

HP4750 Operating Procedure
