Magnetic Bead Collection Tube Stand

Magtrap™ <Magnetic separator>

Cat.# DD100 / Size: 1 kit

Magnetic stand is capable of holding six 1.5 ml and 2 ml tubes. The base, which contains powerful magnets, and the tube holder sections are detachable, allowing for the simultaneous magnetic collection and dispersion of six tubes.

​

Features

• The base and tube holder sections are detachable, allowing for the simultaneous magnetic collection and dispersion of six tubes.
• It has strong magnetic collection capability.
• The connecting mechanism allows for an increased number of tubes to be held.
• The compact size of the tube holder section enables vortexing.
• A multi-channel pipette can also be used.

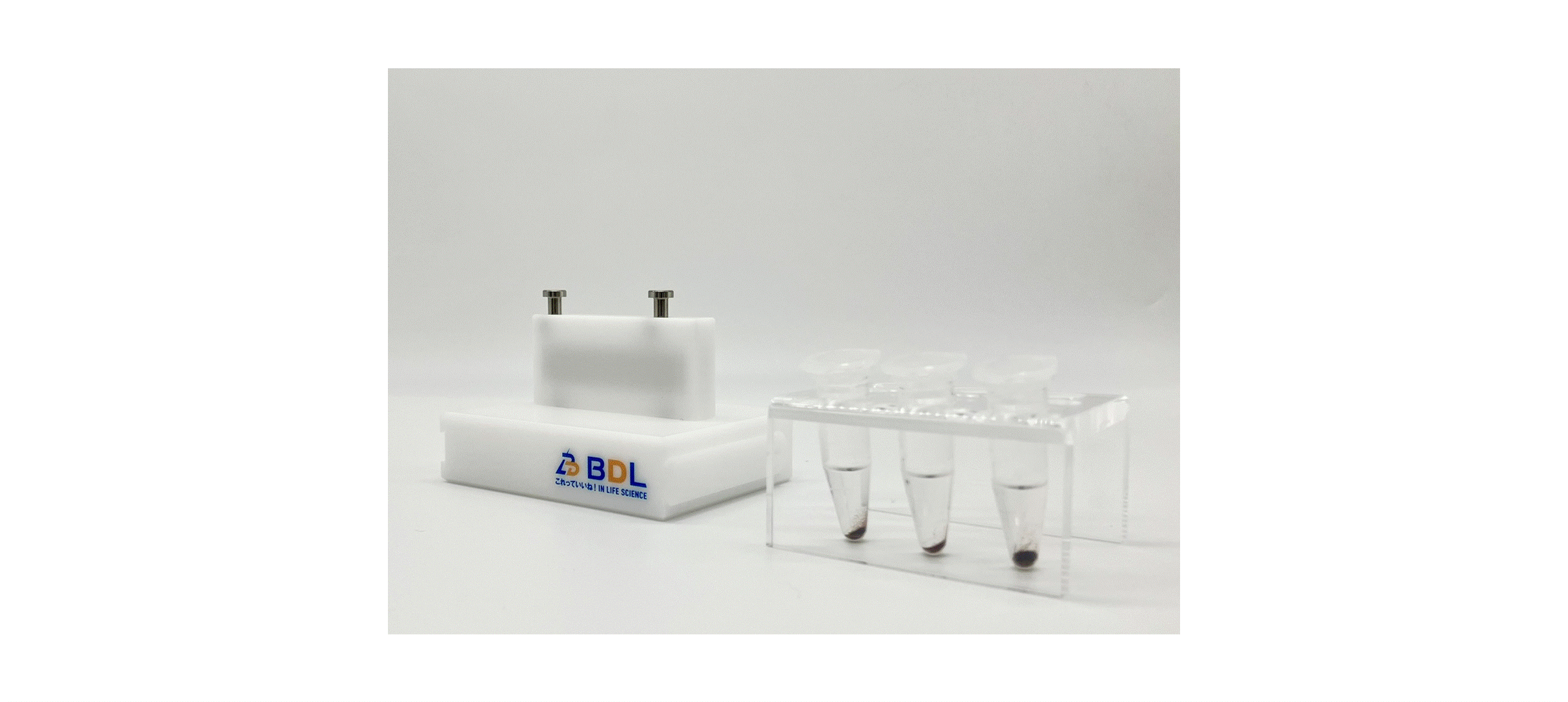

​Stand Detachable Mechanism

The base section, which contains powerful magnets, and the tube holder section are detachable, allowing for the simultaneous magnetic collection and dispersion of six tubes.

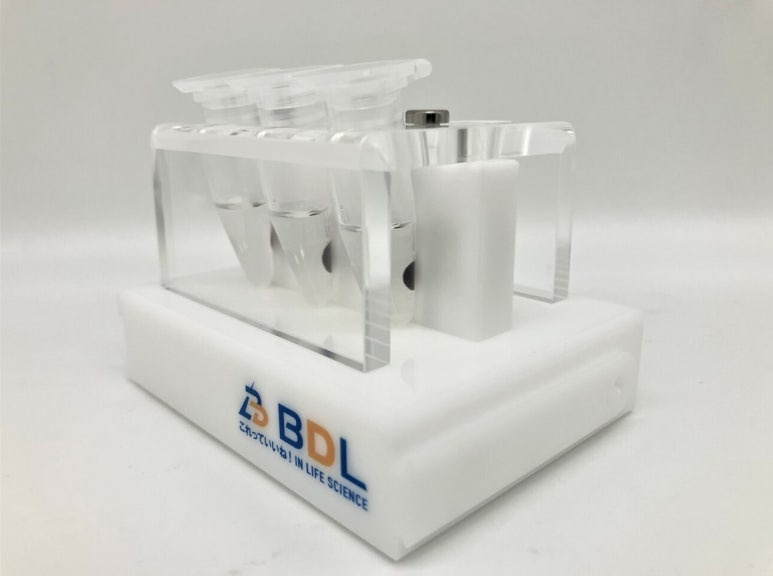

High Magnetic Collection Capability

The stand utilizes powerful neodymium magnets and a close-fitting structure created by angled holes, enabling strong magnetic collection.

Left: Magtrap™, Right: Conventional product



Connecting Mechanism



Multiple racks can be connected using the ant-like grooves on the sides of the base.

​

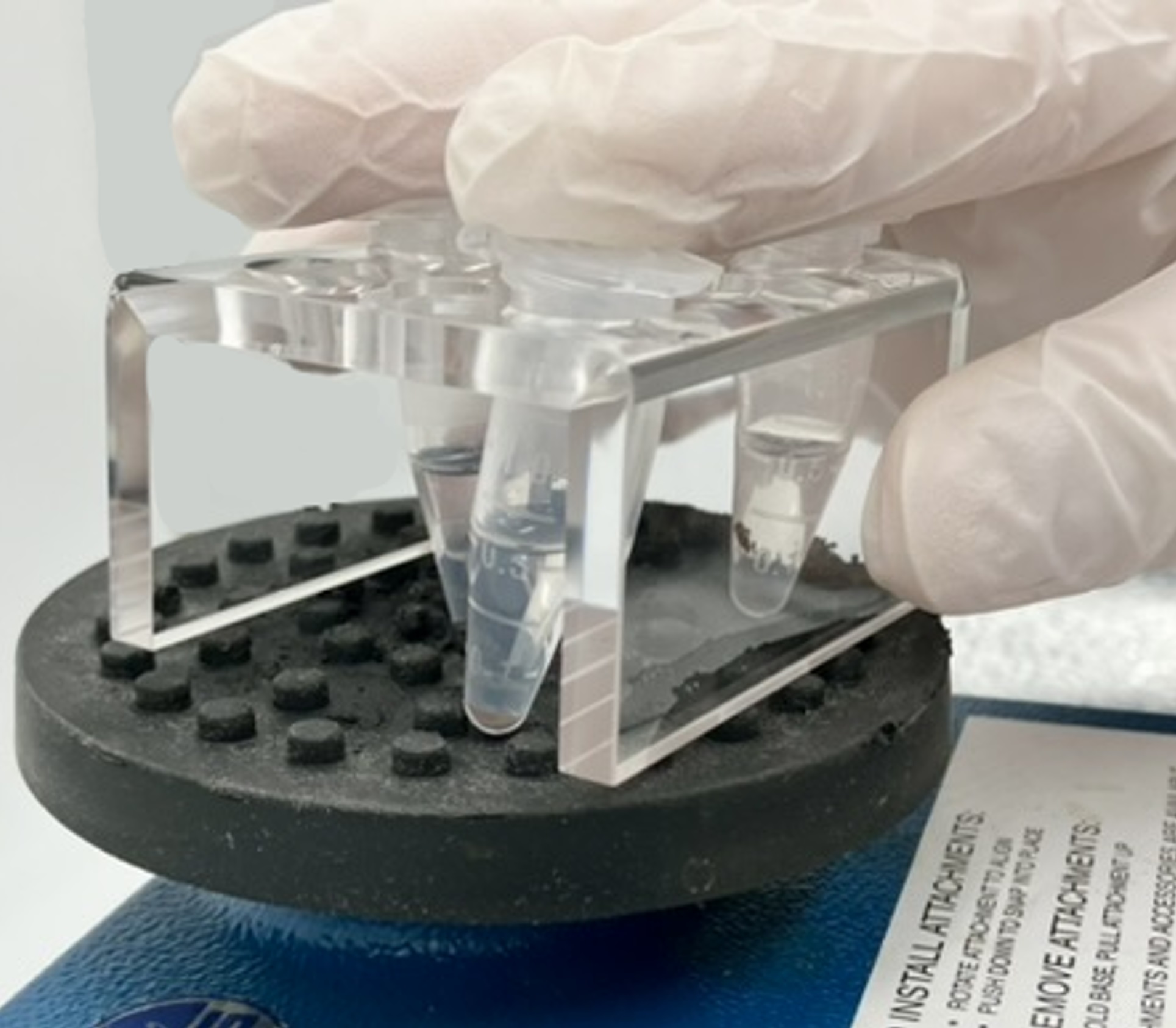

Compact Size for Vortexing



The tube holder section is small enough to fit into a vortex mixer, allowing for the simultaneous vortexing of six tubes by simply holding them in place with your hand.

​

Compatible with Multi-Channel Pipette



The spacing between the tubes is equivalent to two wells of a standard 96-well plate, enabling simultaneous handling with a multi-channel pipette, where pipette tips can be set for every two channels.
