PNGase F PRIME-LY™ ULTRA GLYCOSIDASE (Lyophilized Format)

Cat.# NZSU-LY /  Size: 100ug



PNGase F PRIME-LY™ ULTRA Glycosidase is optimized and specifically formulated for high resolution imaging in small structures or cells. This enzyme specifically removes N-linked oligosaccharides from glycoproteins. This is a high-performance enzyme that has been shown to require as few as 3,000 cells per replicate with 3-20% coefficient of variation to capture label-free N-glycan profiles (as shown in Angel et. al., J Proteome Res. 2019).

Specification

Target Coreasparagine-linked (N-linked) oligosaccharides (mannose, hybrid, and complex)

Compatible Glycoprotein	Native and denatured
Source of PNGase F PRIME-LY™ ULTRA	Recombinant, E. coli
Total Protocol Length	30 minutes to 24 hours
Typical Yield	1 Unit of enzyme will completely deglycosylate 10 µg of denatured IgG following incubation for 10 minutes at 37°C. 1 Unit = 1 IUB milliunit.
Quantity	Each standard vial of lyophilized format enzyme contains 100 µg of PNGase F PRIME™ [1,000,000 Units/mL (8.14 mg.mL)] lyophilized from 1X PBS. The final concentration of the enzyme is ultimately determined by the amount of dH2O used in the reconstitution process.
Purity	≥95% as determined by SDS PAGE
Contains Glycerol	No
Compatible with Mass Spec	Yes
Affinity tag for purification	Yes. PNGase F PRIME-LY™ ULTRA contains a His-tag.
Reaction Conditions	In vitro and in situ
Storage	-20°C or 4°C (avoid multiple freeze-thaws)
Shelf Life	1 year
Microbe Free	Yes, lot tested

* PLEASE NOTE:

For general users who are not Glycobiologists, every glycoprotein substrate is different.

Therefore results can vary depending on the target protein.



Example Data

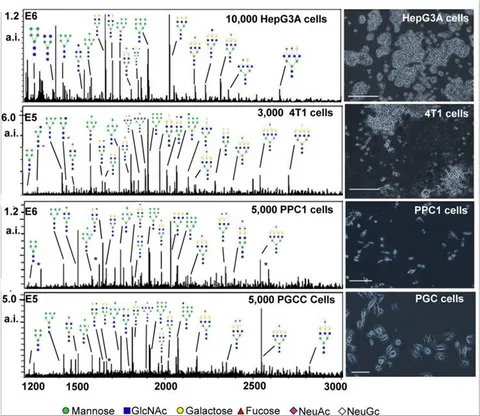

N-Glycan Profiling of Culture Cells

Typically, N-glycosylation studies done on cultured cells can require up to millions of cells followed by lengthy preparation to release, isolate, and profile N-glycans. To overcome these limitations, a rapid array-based workflow for profiling N-glycan signatures from cells was developed utilizing the capabilities of PNGase F-PRIME-LY™ ULTRA. This method was adapted from imaging mass spectrometry (IMS) used for on-tissue N-glycan profiling. Using this approach, N-glycan profiles from a low-density array of 8 cell chambers could be reported within four hours of completing cell culture.

Image from  Angel, P. et. al. J. Proteome Res. 2019
