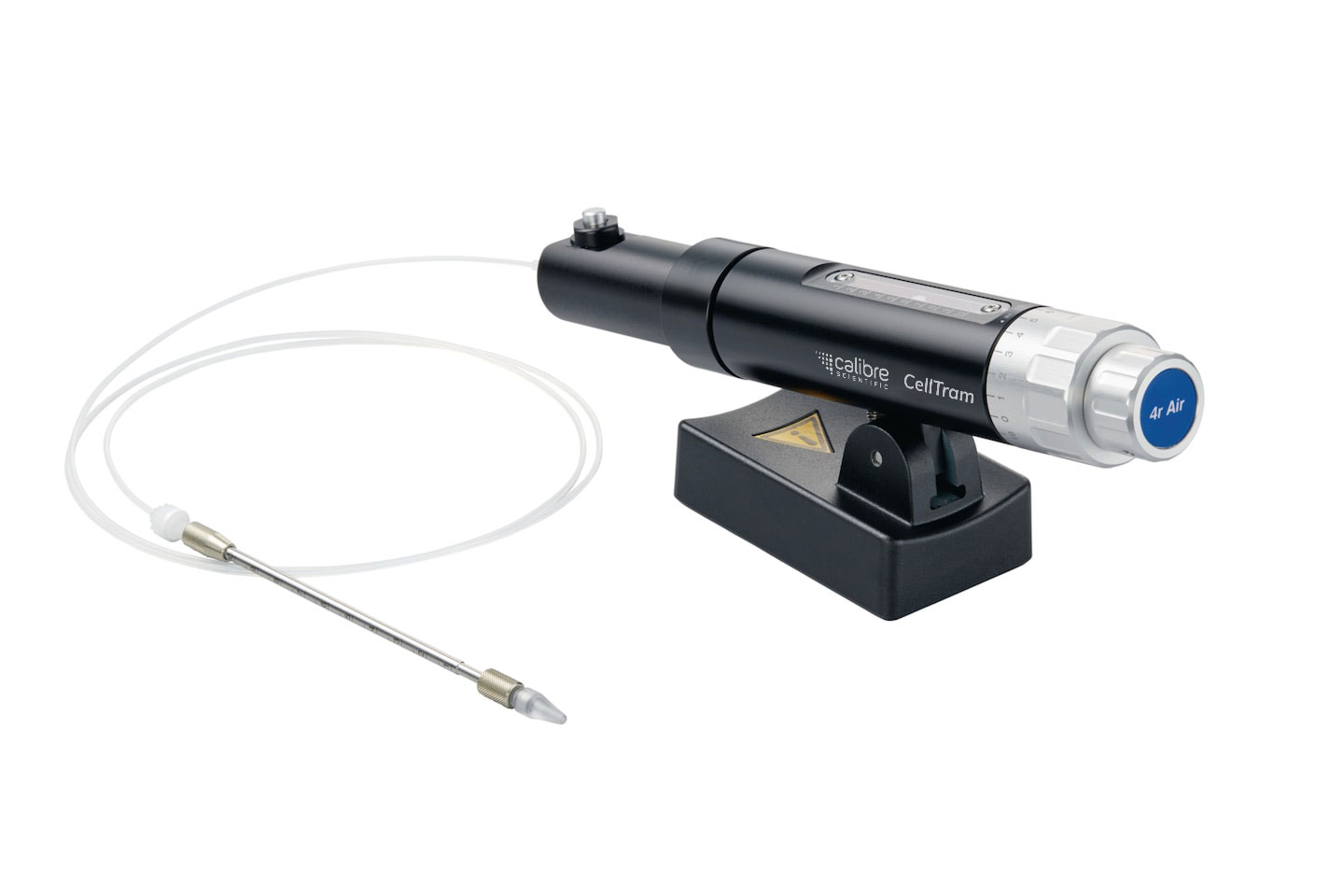

CellTram 4r Air

Cat.# EPE-5196000013 / Size: 1 unit

Product Description

Product Description:
  • manual pneumatic microinjector
  • with gears 1:1 and 1:10, for holding and injection

Product Specifications

Specifications:
Technical Data
Specifications
CellTram 4r Air
Injection tube
Fluorinated ethylene propylene (FEP), 1.3 m length, inner diameter 0.5 mm, outer diameter 2 mm
Pressure generation
Cylinder/piston system, air-filled
Volume change per revolution
60 µl/600 µl (fine/ coarse rotary knob)
Cylinder volume
10 mL
Min. adjustable volume
<100 nL
Max. pressure
3000 hPa
Features
  • Oil-free system with optimized resolution for holding larger cells in suspension and injection of cells (e.g., sperm)
  • Simple setting of operating point via pressure compensation
  • Extremely simple operation because no oil filling is required
  • Two rotary knobs of different transmission ratio (1:1 and 1:10) for the highest standards in terms of resolution, sensitivity and response behavior
  • Capillary holder 4 with markings for easier positioning
  • Compatible with most commonly used micromanipulators
  • Position indicators and marking for in/out to reduce risk of user errors
  • Stable, nonslip base plate
  • Highly reliable performance with minimal maintenance
Subcategory:
Microinjectors
Autoclavable:
no
Sterile:
no
Barcode:
no
Filtered:
no
