ThermoPlate®Ⅲ

UpCell®/RepCell®dedicated glass heater

​

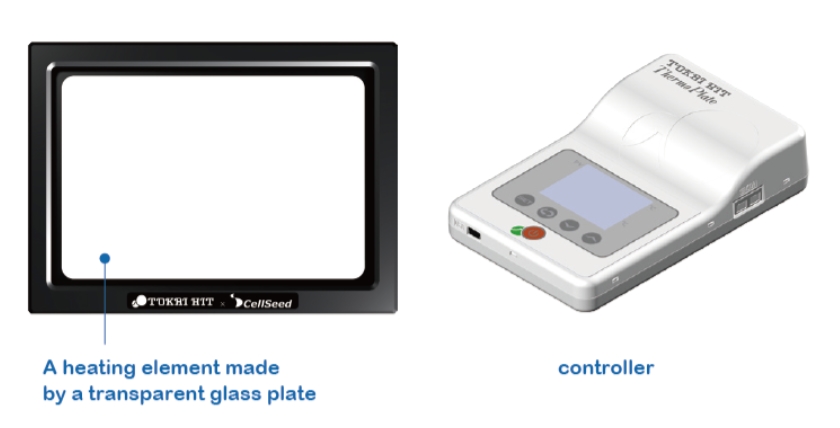

A heating element made by a transparent glass plate.

It is the size that a multi-well plate can be placed on.

​

Key Features


  • A heating element made by a transparent glass plate.
  • Maintain the temperature of the UpCell at 37°C outside the incubator
  • Ideal for temperature control during microscopic observation and medium exchange
  • It is the size that one multi-well plate can be placed
  • Using a sterilization-compatible temperature sensor, it is possible to measure the actual temperature of the medium and correct the plate surface temperature.
  • The sample temperature measured by the sensor can be displayed and recorded. Data can be output in CSV format.
  • Adopted continuous output control method from conventional ON-OFF control
  • Compatible with standard XY mechanical stages

​

Features of Thermo Plate III for UpCell® / RepCell®

  • A transparent heating element made by specially processing hard glass.
  • Improves work efficiency in a clean bench such as microscopic observation using UpCell® / RepCell® and medium exchange.
  • The temperature can be set from room temperature to 50 ° C.
  • Lightweight (Heating Plate: about 70g) and suitable for carrying
  • It can also be used to prevent anti-fog during shooting by covering it over a culture dish or multi-well plate.

​

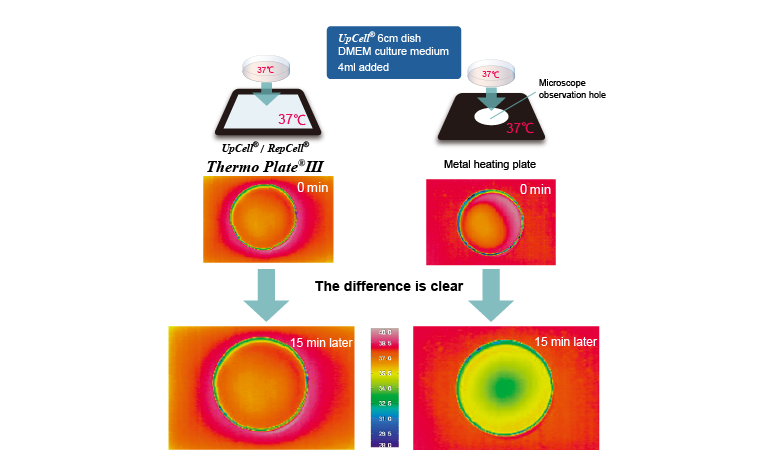

Culture dish temperature distribution comparison



※ In the photo, the temperature around the dish is displayed high, but this is due to the reflection of the dish and does not affect the actual temperature inside the dish.

For anti-fog of the lid when observing / shooting



Specification & Ordering Information

Product
Contents
Cat.No.
ThermoPlate III-X for UpCell®/RepCell®
Components
  • 1 main unit (thermo plate), 1 controller, 1 sterilization compatible temperature
    sensor, 1 extension wire for sensor, 1 soft TEM (CD-ROM), 1 USB cable
Setting range
  • Room temperature to 50℃
Temperature accuracy
  • ±0.1℃(at 37℃ / room temperature 25℃ / center of plate / Tokai hit measurement conditions)
External dimensions
  • Heating Plate W150 x D110 x H10 (mm)
  • Controller W85 x D135 x H30 (mm)
Weight
  • Heating Plate about 70g
  • Controller about 160g
CST007
ThermoPlate III-S for UpCell®/RepCell®
Components
  • 1 main unit (thermo plate), 1 controller
Setting range
  • Room temperature to 50℃
Temperature accuracy
  • ±0.1℃(at 37℃ / room temperature 25℃ / center of plate / Tokai hit measurement conditions)
External dimensions
  • Heating Plate W150 x D110 x H10 (mm)
  • Controller W85 x D135 x H30 (mm)
Weight
  • Heating Plate about 70g
  • Controller about 160g
CST008

※Please note that ThermoPlate III-S cannot be purchased separately for the temperature sensor, extension cable, and soft TEM (CD-ROM) + cable that come with III-X.
